Description
Product Details:
Minimum Order Quantity | 20 Unit |
Type | Electric |
Charger Type | Digital |
Input Voltage | 120-260 V AC |
Warranty | 1 Year |
Current | 12 A |
Output Voltage | 60-64 V DC |
Mains Operating Frequency | 40 Hz to 60 Hz |
Max. Boost Charging Voltage | 64 V |
Trikle Voltage | 54 V |
Efficiency | 89% Typical |
Power Factor | 0.97 Typical |
Output Ripple Current | Less than 2 A |

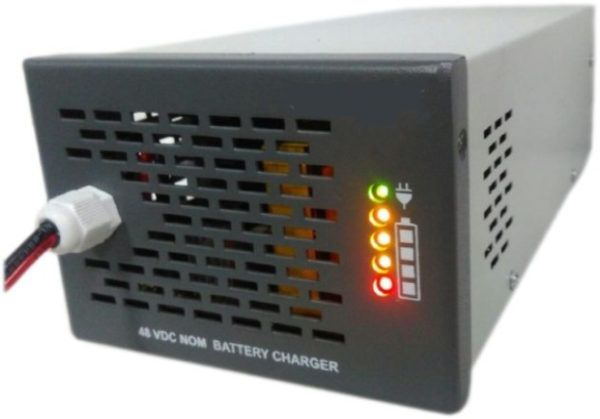

Digital Solar DS4812 is a complete unit used for charging 4 batteries in the string (48V). This charger is specially designed for E-Rickshaw application with intelligent SMPS based charging profile. The charger provides charging current at very low input voltage along with attractive LED indication for showing charge status of the battery. As well as batteries get charged all the four indication gets steady and it automatically disconnects the grid power on charging completion. Along with this charger is having output short circuits protection and reverse polarity connections.
E-Rickshaw SMPS Battery Charger is specifically developed for E-Rickshaw application with four Batteries. This charger has an intelligent DSC based charging profile with automatic temperature compensation to ensure effective charging during winters and reduce electrolyte loss during summers. The charging current and voltage are automatically controlled depending on environmental and battery charge condition, thereby enhancing battery life and backup mileage. The highly Efficient SMPS power stage with Power Factor Correction delivers the lowest electricity consumption and provides charging current even at low mains voltage. The charger has an attractive LED indication for showing charge status of the battery and audio alarm to announce various events. The charger is having the most advanced Electronic output short-circuit and reverse polarity protection to avoid hassles of fuse replacement.
Features:
Charging Current and Voltage profile optimized for Cyclic Deep Discharge E-Rickshaw application to enhance backup time.
High Efficiency with Power factor correction to reduce Power Consumption from Mains.
Electronic Reverse Battery Protection – enhanced safety and avoid inconvenient fuse replacement in case of accidental reverse connection.
Compact size for easy handling.
Rugged metal enclosure.
Charge profile ensures maximum charge return to ensure longer battery life.
High charging current even at low mains voltages for faster charging.
Electronic reverse battery protection – enhanced safety and avoid inconvenient fuse replacement in case of accidental reverse.
Mains input can withstand up to 440V phase voltage.
Informative battery bar graph and mains indication along with audio alarms.
Compact size for easy handling with rugged metal enclosure.
Two available models with 15A and 12A Maximum Charging currents to accommodate different Battery AH capacity.
