Description

Product Details:

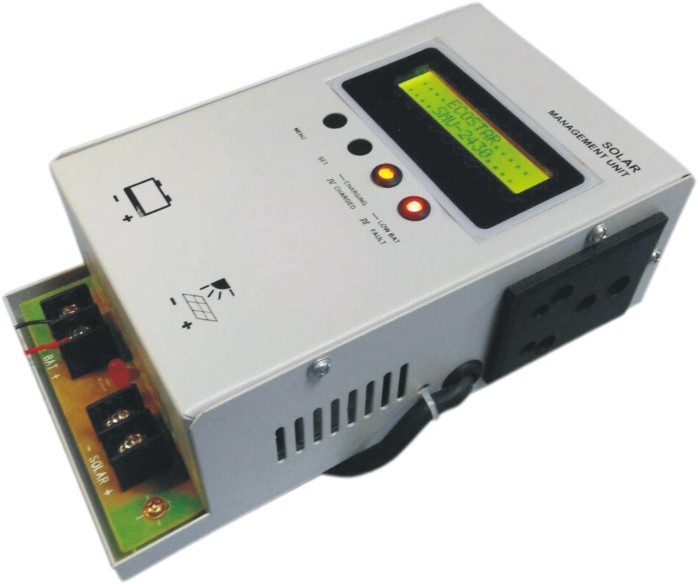

Solar Management Unit is ideal to manage the optimum flow of solar energy into the batteries and other electrical appliances.

Other details:
This is a complete unit used for adding solar charge capability to existing domestic ups installation along with configurable energy saver mode. If energy saver mode is on in that case when the battery is fully charged and surplus solar power is available, the SMU transfers the load from mains grid to solar energy. If solar energy supplied from the PV panels is not sufficient to support the complete load, kWh the balance energy will be drawn from battery storage. If the battery reaches a preset threshold due to higher discharge, the SMU will transfer the load back the o-grid. If energy saver mode is OFF then SUM will not transfer load on solar. It kept the battery charged as well as solar and grid is available.

Features:

• High-efficiency PWM type solar charge controller LED display for battery voltage, PV current, total solar energy supplied kWh.
• Menu selection of various parameters.
• Configurable energy saver
• Automatic selection of 12 or 24 battery bus at the time of installation.
• 3 stage intelligent charge profile (absorption, float) to enhance battery life.
• Adaptive charge control linked to the battery depth of discharge to ensure good recharge.
• PV reverse polarity electronic protection with LED indication.
• Battery high and low voltage
• PV over –current and reverse –current protection.
• Lightning surge-protected solar input.
• High rated relay and most good reliability and efficiency.
• Auto fault bypass for user convenience.
